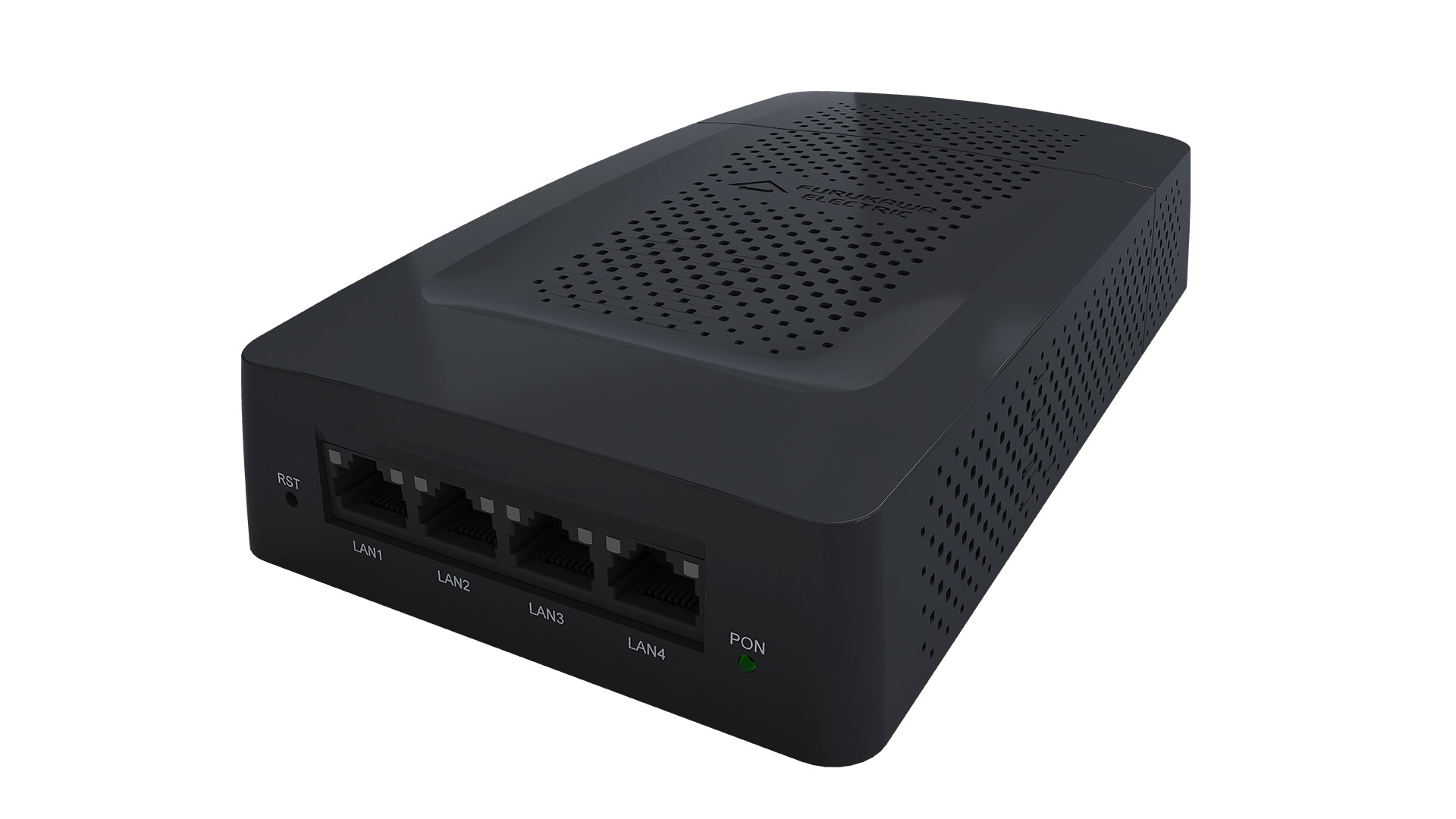

OPTICAL MODEM GPON 710-40B


General Characteristics
  • Applications in convergent IP systems;
  • Allows connection of 4 data ports and 4 voice ports;
  • Enables VLAN configuration on each port;
  • Transmission Wavelenght: 1310 nm;
  • Reception Wavelenght: 1490 nm;
  • Optical Transmission Power : 0,5dBm ~ +5dBm;
  • Optical Reception Power : -28dBm;
  • T-CONT GEM Port Mapping with scheduling based on priority;
  • Has status LED indicators.
Interface Specifications

WAN port
  • 1 uplink GPON (SC-APC)

Service

  • 4 Gigabit Ethernet 10/100/1000Base-T (RJ-45) ports
Online store

Technical Form

5% ~ 90%, without condensation
