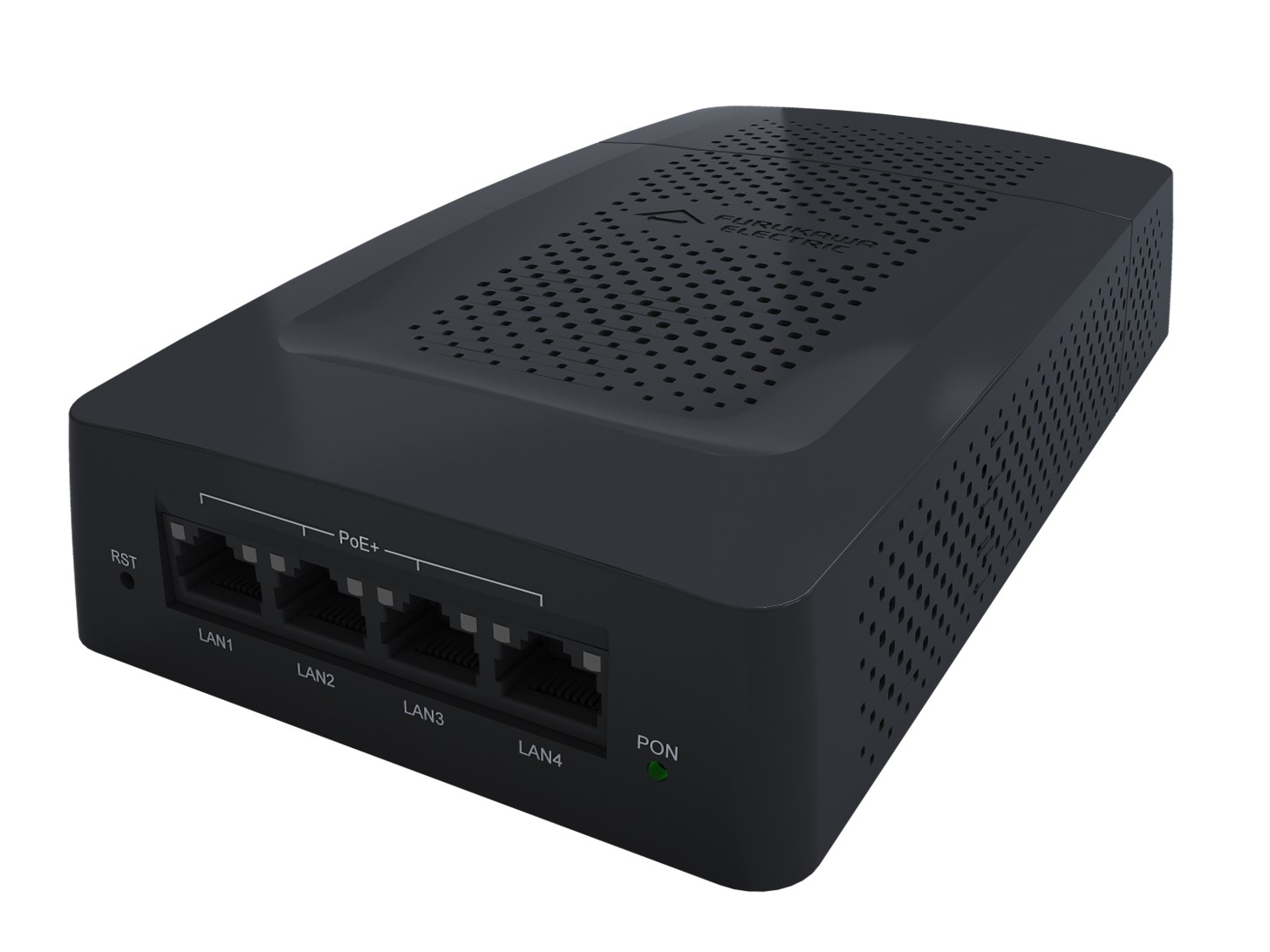

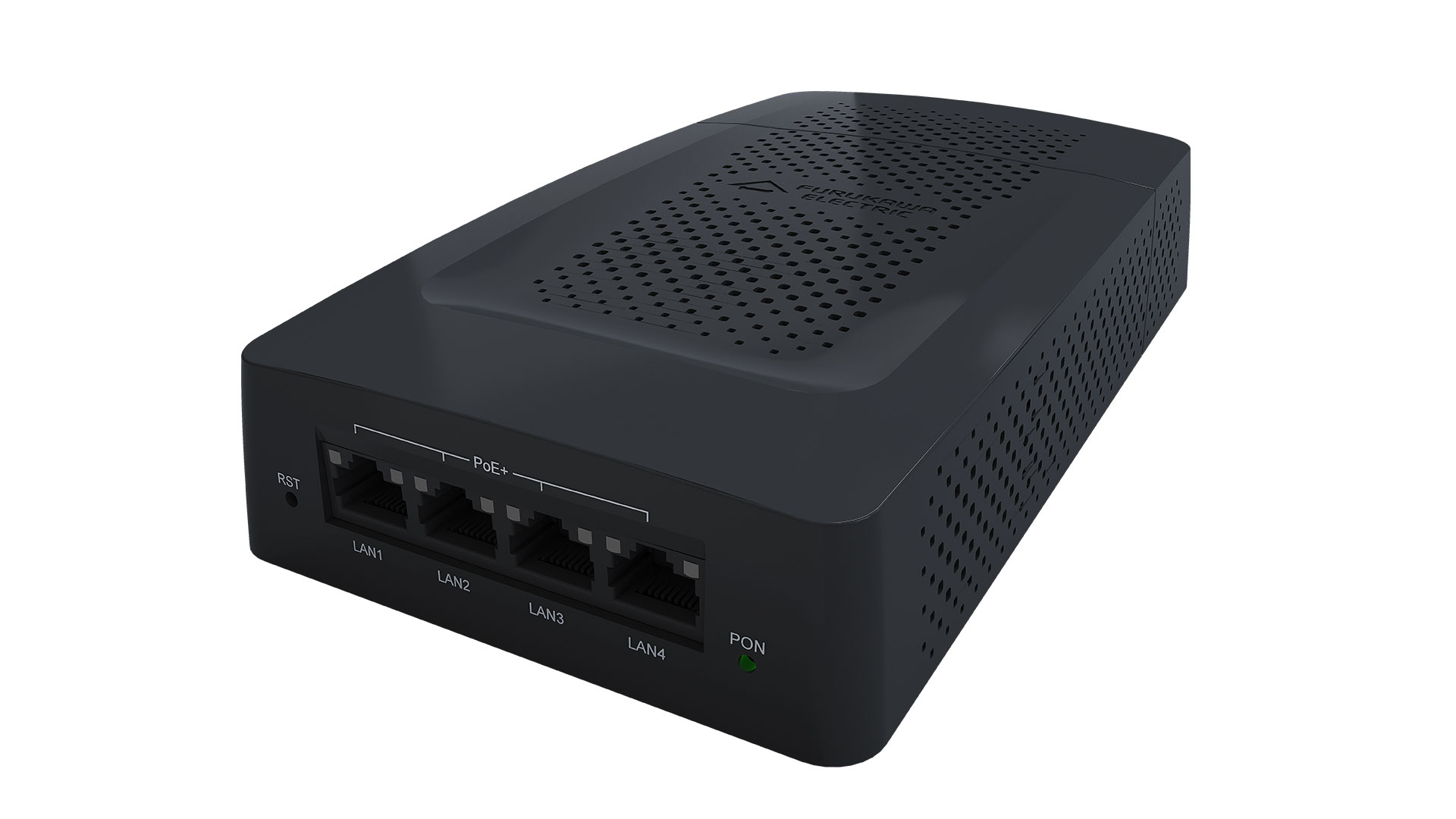

OPTICAL MODEM GPON LW710-40BP


The GPON ONT LW710-40BP is a terminal equipment compliant with the ITU-T G.984. It has 4 data ports 10/100/1000 Base-T Gigabit Ethernet that supports Power over Ethernet(POE) feature, which could implement electrical power and data connectivity over a single Ethernet cable. Supports data rates up to 1.25 Gbps upstream and 2.5 Gbps downstream.


General Characteristics
  • Applications in convergent IP systems;
  • Allows connection of 4 data ports with PoE(Power over Ethernet) support;
  • Enables VLAN configuration on each port;
  • Has protected optical input;
  • Transmission Wavelenght: 1310 nm;
  • Reception Wavelenght: 1490 nm;
  • Optical Transmission Power : 0,5dBm ~ +5dBm;
  • Optical Reception Power : -8dBm ~ -27dBm;
  • Flexible mapping between GEM Ports and T-CONTs.
Online store

Technical Form

10% ~ 90%, without condensation
